Large-scale welding robotic systems

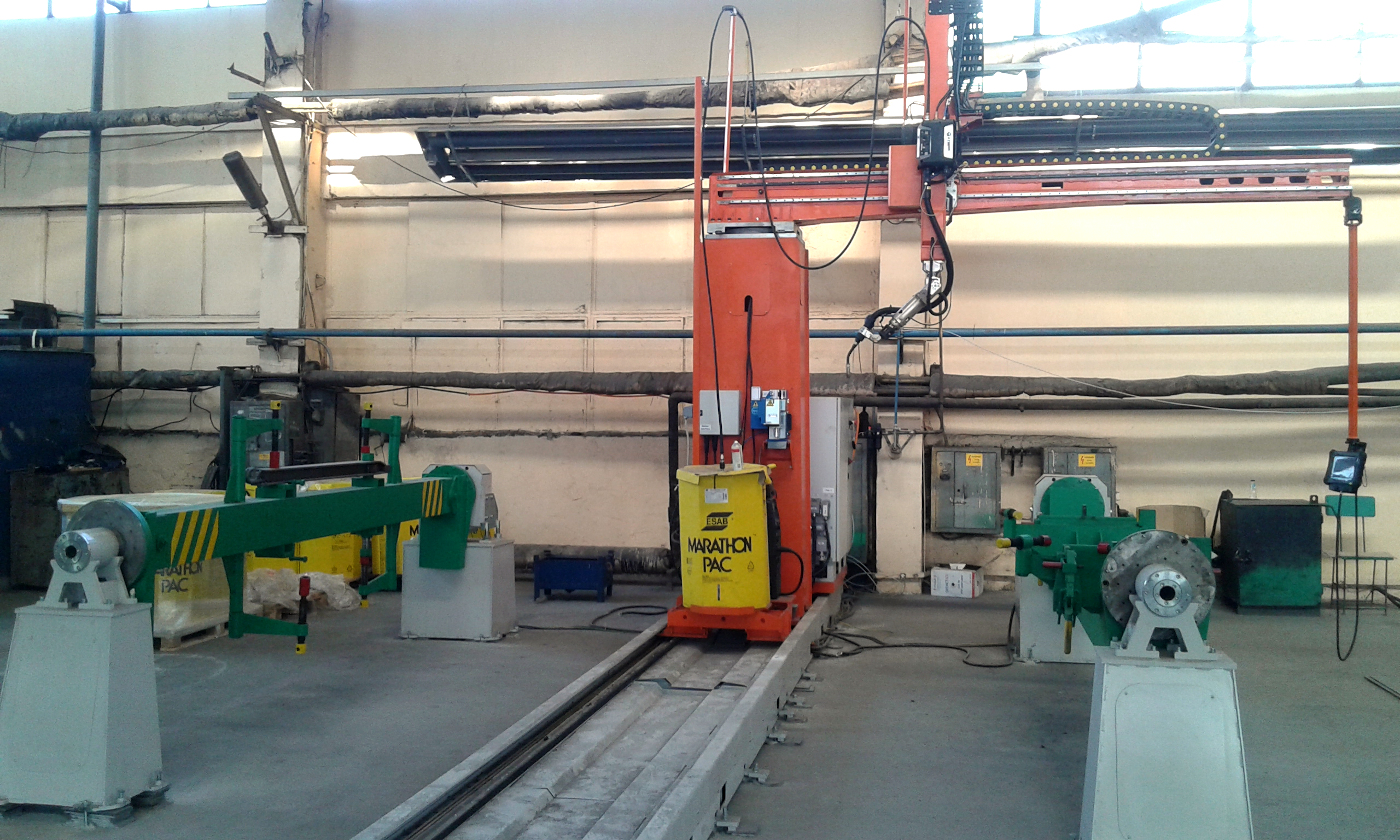

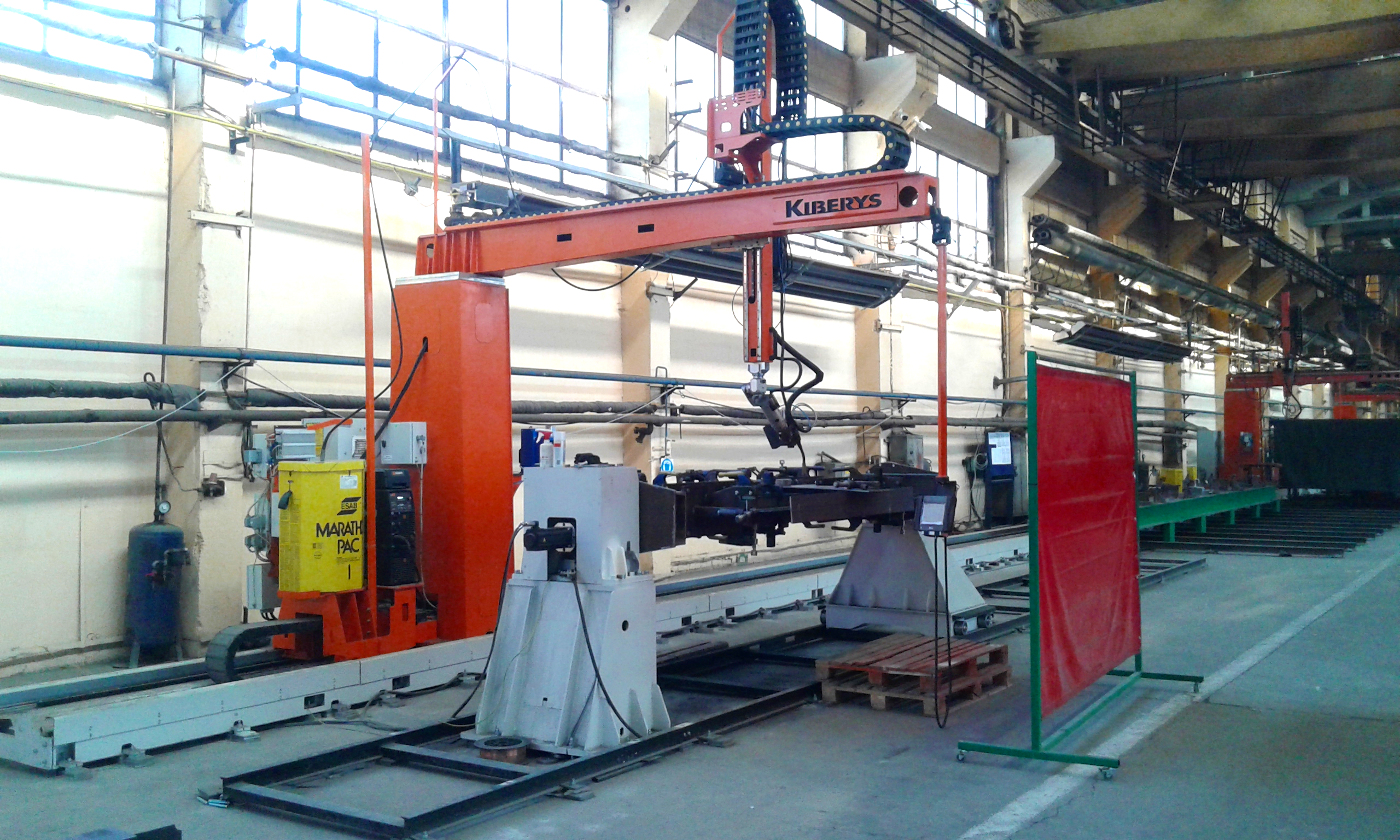

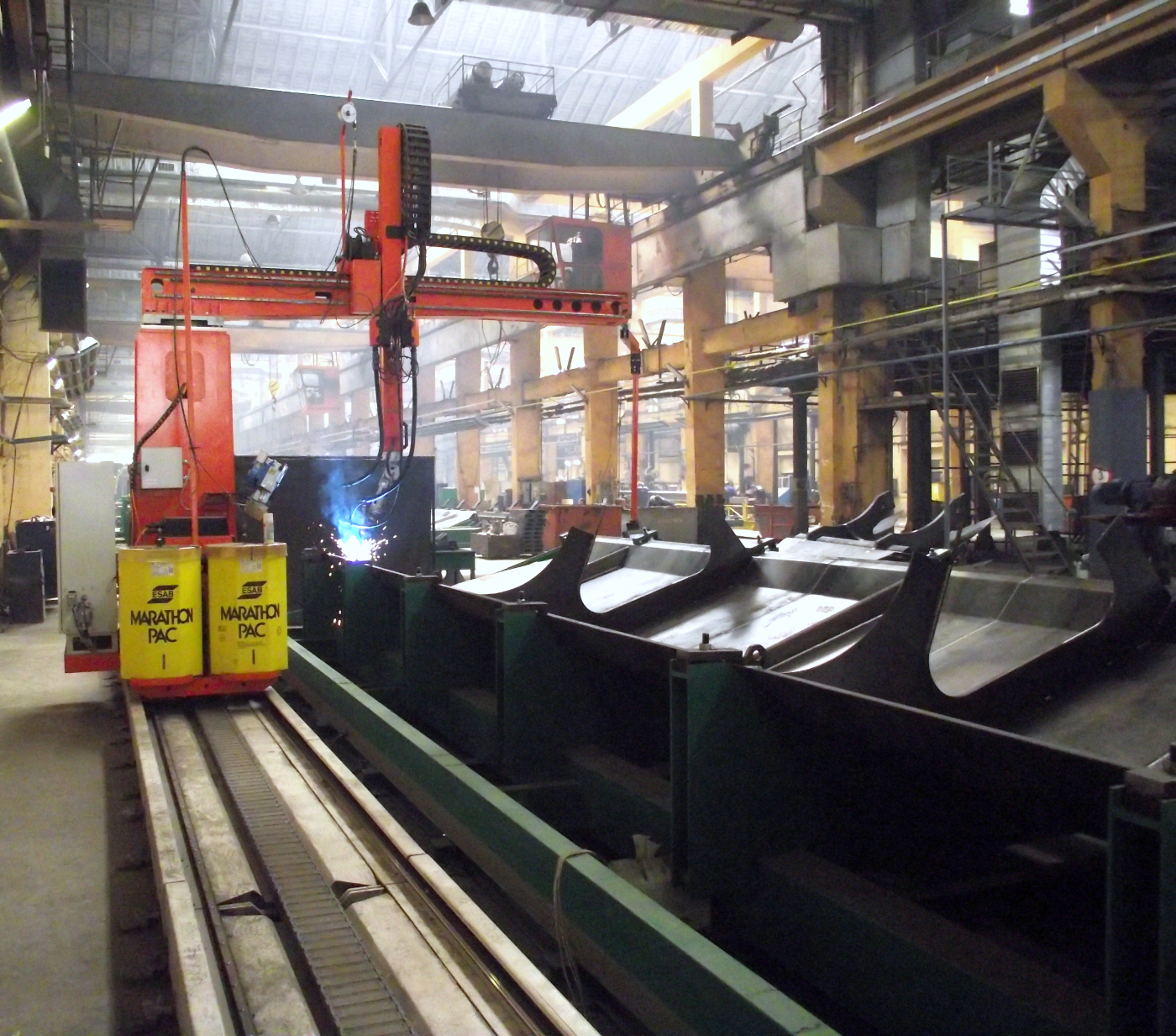

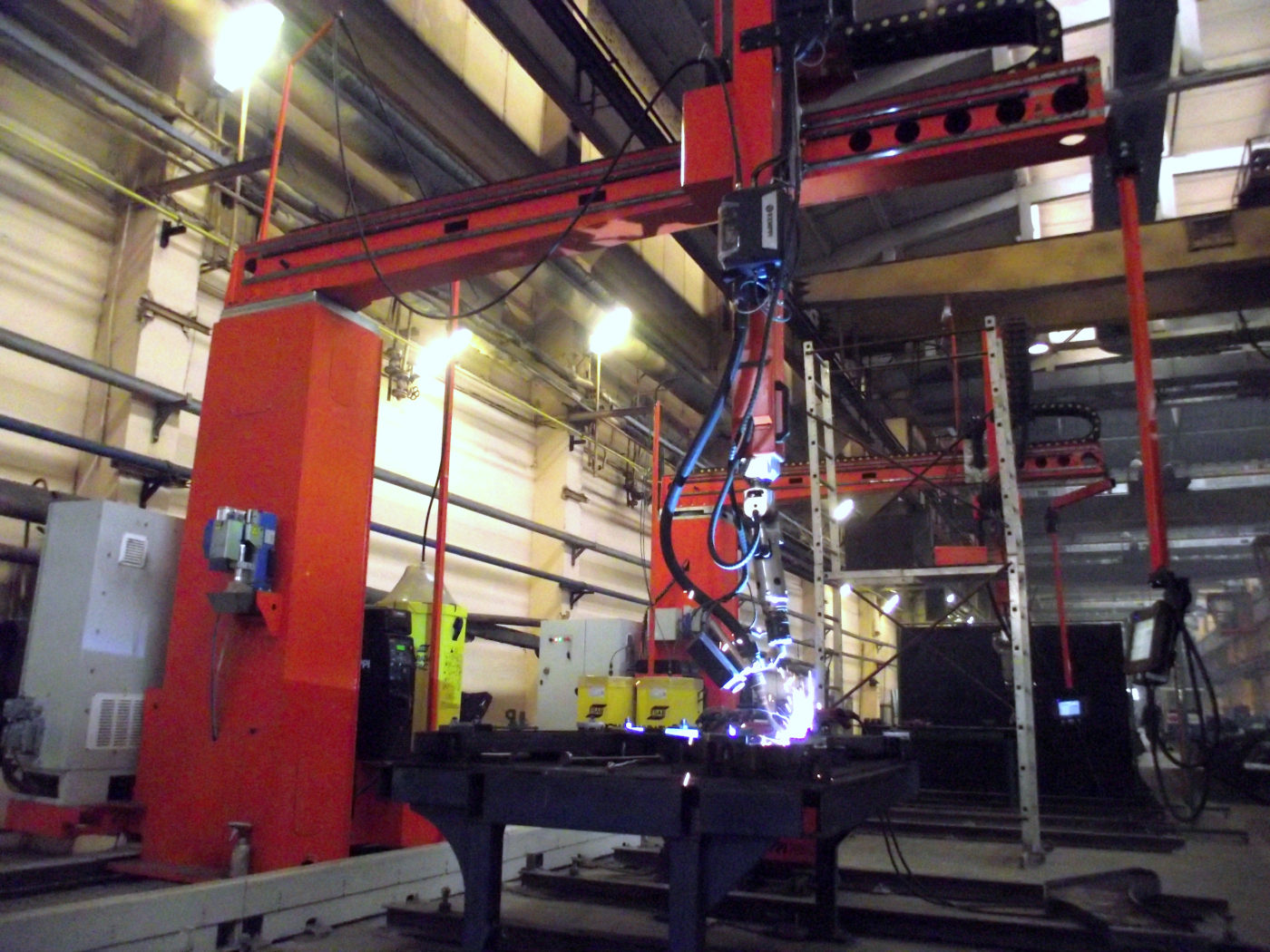

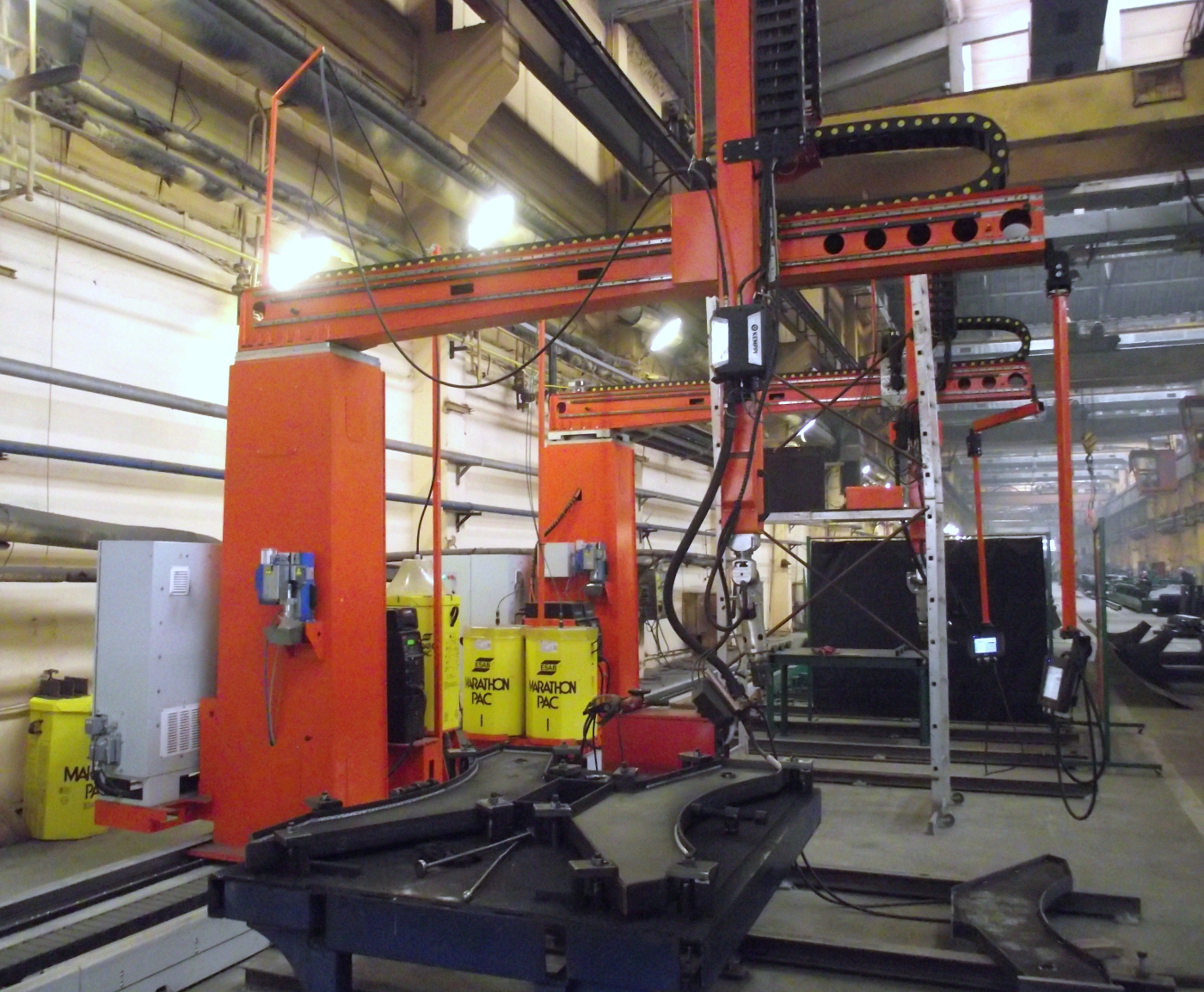

High-dynamic robotic, multi-axis automated welding system. KBWELD HDC is a console-type linear-drive system with a robust construction with precision guides. It achieves high speed and accuracy thanks to digital servo-controlled motors. KBWELD HDC6 has a wide range of applications – complex, ribbed beams with slopes, panels, boards, ribbed sections; For straight and circular seams, various building elements, machine housings and more.

Key Features

5 or 6-axis, robotic welding column systems with rotary Y-beam;
• Multiple work-areas along the X-axis;
• High-speed welding by Tandem welding systems;
• Welding seam tracking capabilities;
• Multiple peripheral servo-positioners controlled;
• Multiple robots welding simultaneously within the same work-area;
• Infinite longitudinal stroke along the X-axis rail due to all-n platform system design;
• Automatic optimized welding torch cleaning capabilities;
• Offline programming on a 3D model of the work-piece with searching the seam position;
• Unique self-adjustable seam tracking feature during welding;
• Multiple coordinate systems – Torch TCP control, World and Machine coordinate system;
• One and two-axis servo-positioner coordinate motion.

Technical Specifications
