Fully Automated Profile Cutting Line

Features

  • Offline programming is available for profile cutting applications;
  • Capable of 3 and 4 sided cutting and beveling;

A complete coping cell line with full level automation could be supplied for a wide range of profiles and beams starting from L, U, box section profiles, and H-beams with dimension from 20x30mm to 500x250mm.

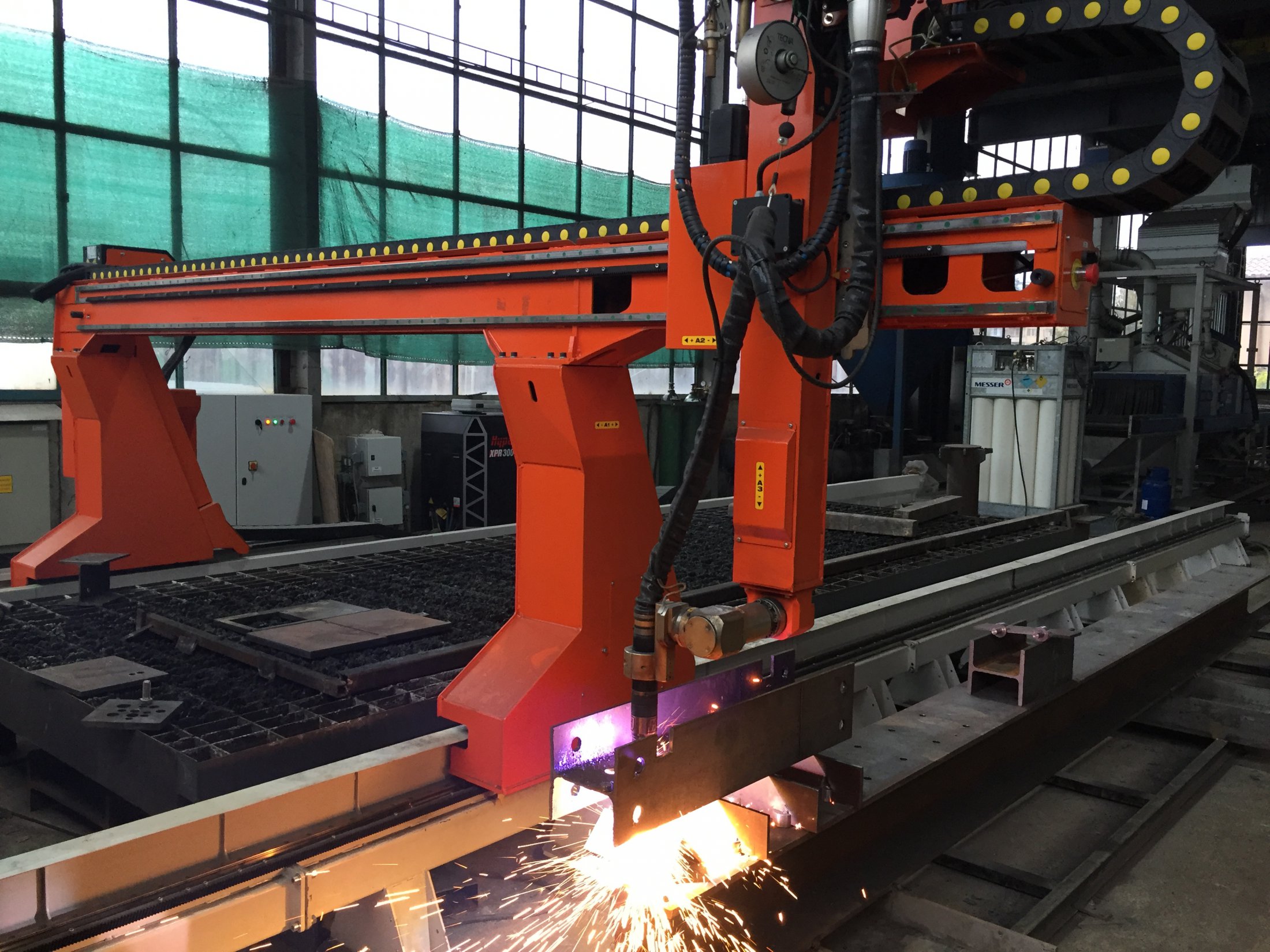

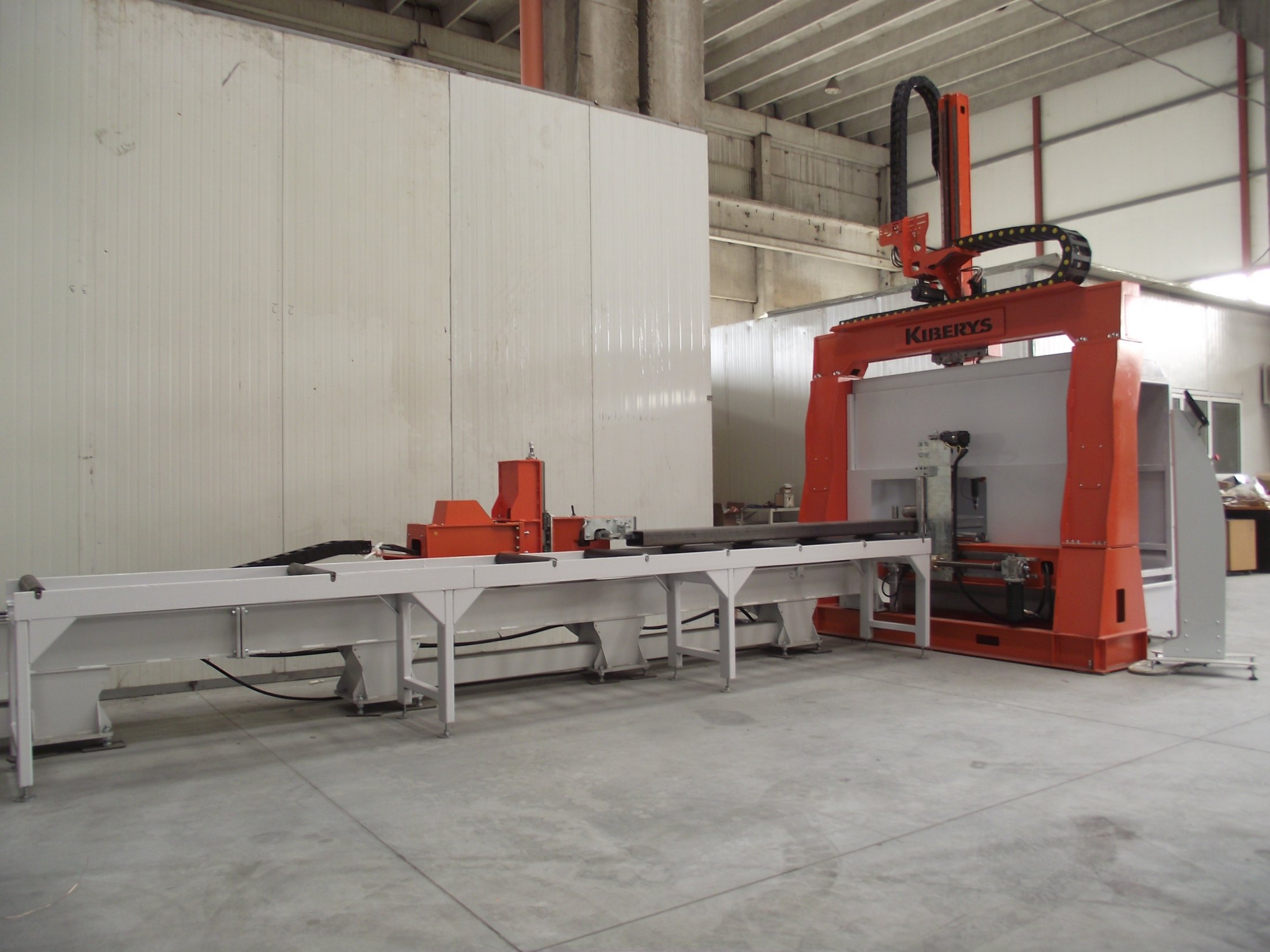

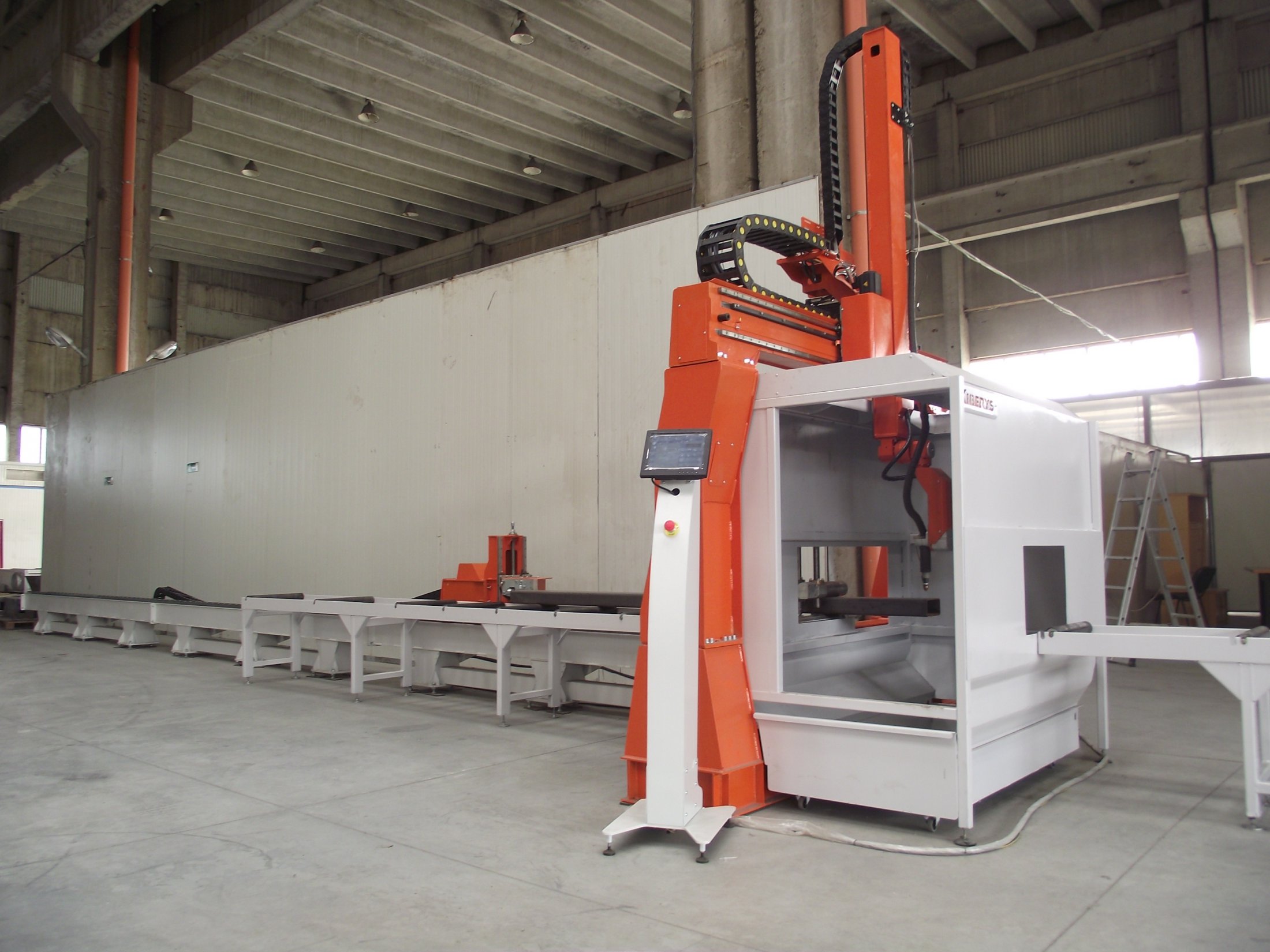

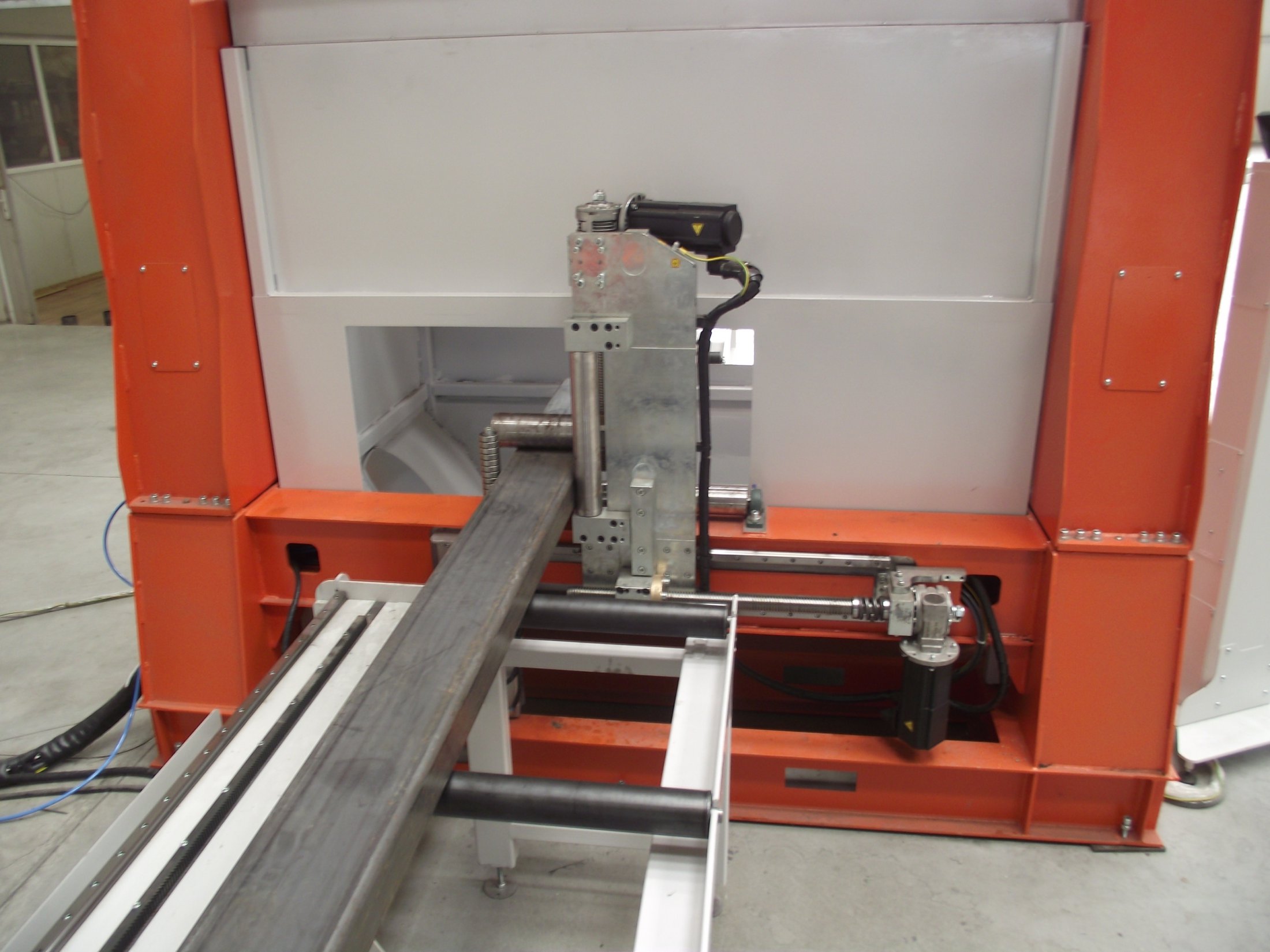

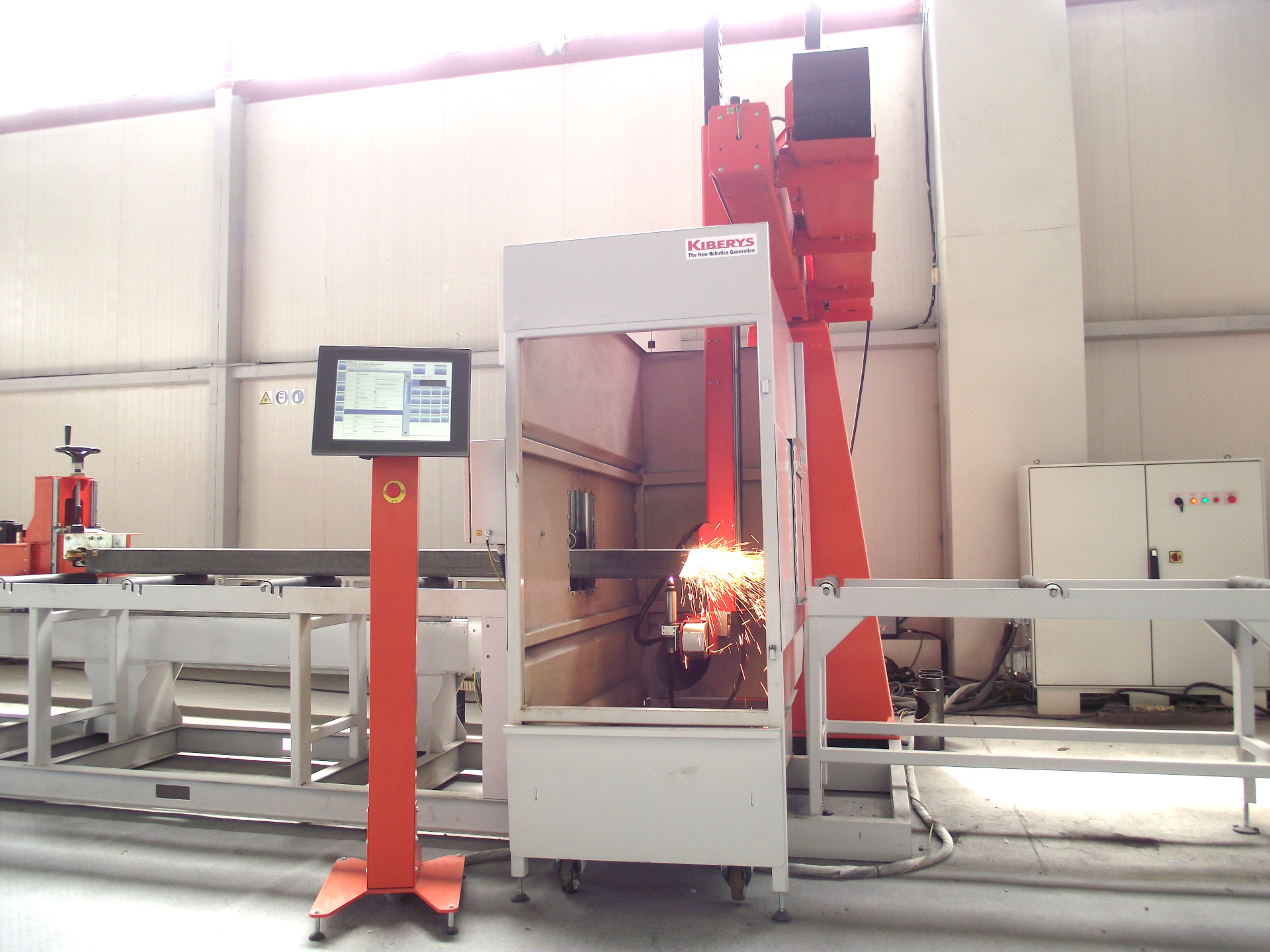

Profile cuting 4-side Gantry system for metal sheet and profile cutting Profile cutting gantry system Profile cutting gantry system Profile cutting gantry system Profile cutting gantry system

Coping line cutting of rectangular, U and H profiles

The system is capable of cutting and plasma arc marking square, rectangular, L, U and H and round shapes. The lenght and dimensions of the beams is customized according to the application requirements. The system can perform perpendicular and bevel cuts on all sides 4 of the profiles. The system can perform any type of cut possible for the torch geometry, including profile splitting, slotting, parting, holes, openings, chamferings etc. The repeatability of positioning is +/- 0,2mm. The accuracy of positioning is +/-0,3 mm. The system can run in automated program mode or in manually controlled mode with individual part program selection for parts for the same profile type and size.There is a dedicated program for profile length and width measurement. The robot in the coping cell is KIBERYS KBCUT FHD6 with dedicated kinematics, specially designed for 4-sided profile cutting. Inbuilt system programs for collision free motion around the part make programming easy.

Key Features

  • Automatic feeding and positioning of the work-piece by servo-driven manipulators
  • 4-side robotic cutting
  • Square, rectangular, L, U, H profiles
  • Maximum length of the profiles according to requirements
  • Sensors for determining the size of the profile
  • Аutomatic retrieval of the finished parts by output conveyors for small and large pieces
  • Software for automatic nesting from 3D models of the parts
  • Capability of all type bevel cuts
  • Ready-to-cut libraries of the plasma process settings
  • Initial search functions of the torch-to-beam distance and adaptive height control in all 4-planes

A complete coping cell line with full level automation could be supplied for a wide range of profiles and beams starting from L, U, box section profiles, and H-beams with dimension from 20x30mm to 500x250mm.
