Positioners

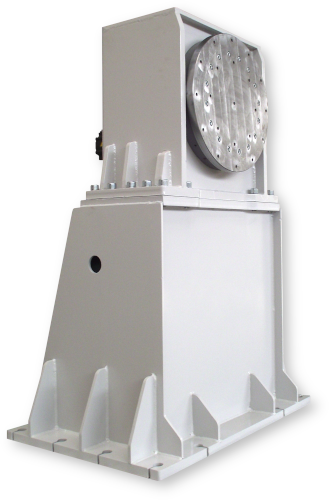

1-axis Servo-positioners
The precise positioning and common program motion control with the Kiberys robotic systems, is a guarantee for good performance and high level of automation. Models from 300 to 10 000 kg payload are available depending on the requirements.
Technical Specifications
| DESCRIPTION | KBSPOS500 |
|---|---|
| Payload | 500 kg |
| Number of axes | 1 |
| Type of motor | AC, servo |
| Max Torque | 860 Nm |
| Max Load inertia | 100 kgm² |
| Max Speed | 70°/sec |
| Flange diameter | 400 mm |

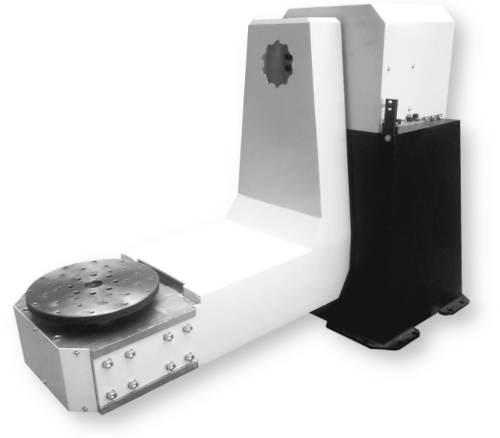

2-axis Servo-positioners
- High precision and minimum backlash;
- Precise synchronization between the robot and the positioner;
- High accuracy and repeatability in positioning the work-piece
Technical Specifications
| DESCRIPTION | |
|---|---|
| Number of axes | 2 |
| Type of motor | AC, servo |
| Payload | 500 kg |
| Max Torque Axis 1 | 1700 Nm |
| Max Load inertia Axis 1 | 400 kgm² |
| Max Speed Axis 1 | 30°/sec |
| Max Torque Axis 2 | 860 Nm |
| Max Load inertia Axis 2 | 100 kgm² |
| Max Speed Axis 2 | 70°/sec |
| Flange diameter | 400 mm |
